Claas has given its Arion 400 series a makeover to mark the introduction of the Stage V emissions standard. Due to be launched in Ireland and the UK this autumn, the changes include a new design, a more powerful top-of-the-range model and Claas Power Management (CPM) to boost power in the Arion 440 and above.
Claas has given its Arion 400 series a makeover to mark the introduction of the Stage V emissions standard.
Due to be launched in Ireland and the UK this autumn, the changes include a new design, a more powerful top-of-the-range model and Claas Power Management (CPM) to boost power in the Arion 440 and above.
All models are equipped with the 4.5l, four-cylinder FPT (Fiat Powertrain) engine.
The range also benefits from more hydraulic power, more lift capacity and a higher gross vehicle weight.
The range now includes a new, more powerful flagship model, the Arion 470.
The range now includes a new, more powerful flagship model, the Arion 470 which boosts to 155hp.
It has a maximum power output of 155hp. All models are equipped with the 4.5l, four-cylinder FPT (Fiat Powertrain) engine which incorporates the latest four-valve technology and turbochargers with intercooling.
Turbochargers from the Arion 430 upwards are also fitted with a wastegate.
Claas says the Stage V after-treatment system cleans the exhaust gases using a combination of SCRoF technology (Selected Catalytic Reduction on Filter) and a diesel oxidation catalytic converter (DOC).
Power shift transmission
From the Arion 430 upwards, users will have the choice of the 16x16 Quadshift or the 24x24 Hexashift power shift transmissions. Meanwhile, the Revershift clutchless reverser enables easy direction changes using the shuttle lever and optionally via the multifunction control lever on the armrest. Smart Stop is another convenient function which enables the transmission to be automatically disengaged when the brake is pressed, and is re-engaged when the brake pedal is released.
Smart Stop enables the transmission to be automatically disengaged when the brake is pressed, and is re-engaged when the brake pedal is released.
Compact
The range has two wheelbase options – the 2.49m version on the Arion 410 and 420 or the 2.53m option on the Arion 430 to 470.
From the Arion 430 upwards, users will have the choice of the 16x16 Quadshift or the 24x24 Hexashift power shift transmissions.

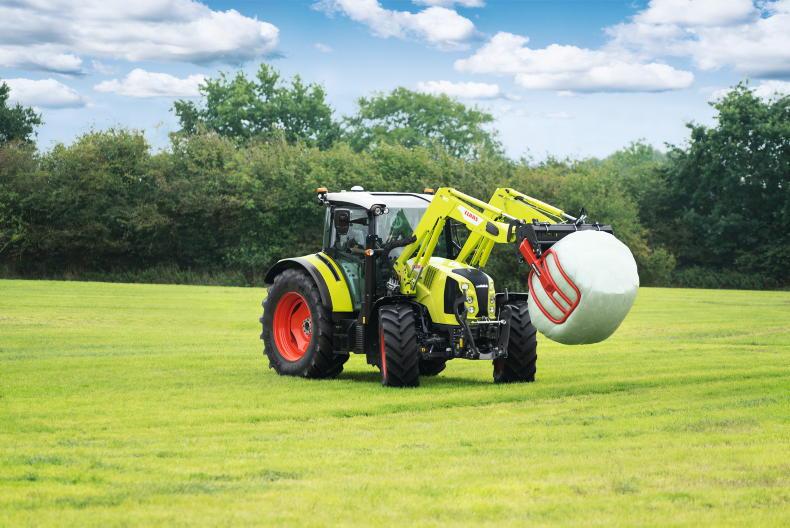

Claas says its stability for front loader work is down to the vehicle’s static 50:50 weight distribution without ballast. The gross vehicle weight has been increased to 9t, permitting payloads of up to 3.8t.
As on the previous series, both the fully integrated front linkage and factory-fitted front loaders can be controlled by the multifunction control lever, with the option of also controlling the front loader by Electropilot (CIS or CIS+) or Flexpilot. Front axle suspension, mechanical two-point cab suspension and various seating options will also be available.
