Amazone presents new 4m Cenio 4000-2 cultivator
Amazone presented its new Cenio 4000-2, which is a hydraulic-folding 4m mounted cultivator. This is a new addition to the Cenio range, which up until now consisted of 3m, 3.5m and 4m rigid models.
The three-point linkage-mounted Cenio is a three-row cultivator with a tine spacing of 30cm, which Amazone says works without any blockages and mixes organic matter into the soil. It’s designed to be used universally by interchanging of the various shares at depths from 5cm to 30cm. This means it can be used for both shallow stubble cultivation as well as deep-loosening tillage.
In the Special version, the Cenio is equipped with shear bolt overload protection. It is also available in the Super version, with spring overload protection and a trip force of 500kg, with the tines holding the pre-set working depth.
The share variants from the C-Mix-3 system are available on the Cenio. This includes the 320mm duckfoot share or the 360mm C-Mix wing share for the full-surface cutting in stubbles. The 100mm or 80mm C-Mix share can be used for primary tillage and the 40mm C-Mix share for deep loosening down to 30cm.
The depth adjustment is carried out hydraulically on the move from the cab. A disc element, with fine-serrated, 410mm diameter concave discs, is available for levelling the soil behind the tines. The levelling unit is automatically adjusted via the parallelogram linkage when the working depth is changed. It comes with a choice of seven reconsolidation rollers.

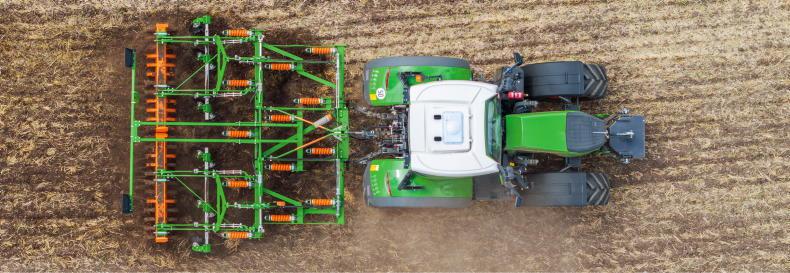

The three-point linkage mounted Cenio is a three-row cultivator with a tine spacing of 30cm
It’s designed to be used universally by interchanging of the various shares at depths from 5cm to 30cm.
A disc element with fine-serrated, 410mm diameter concave discs is available for levelling the soil behind the tines.
Amazone presents new 4m Cenio 4000-2 cultivator
Amazone presented its new Cenio 4000-2, which is a hydraulic-folding 4m mounted cultivator. This is a new addition to the Cenio range, which up until now consisted of 3m, 3.5m and 4m rigid models.
The three-point linkage-mounted Cenio is a three-row cultivator with a tine spacing of 30cm, which Amazone says works without any blockages and mixes organic matter into the soil. It’s designed to be used universally by interchanging of the various shares at depths from 5cm to 30cm. This means it can be used for both shallow stubble cultivation as well as deep-loosening tillage.
In the Special version, the Cenio is equipped with shear bolt overload protection. It is also available in the Super version, with spring overload protection and a trip force of 500kg, with the tines holding the pre-set working depth.
The share variants from the C-Mix-3 system are available on the Cenio. This includes the 320mm duckfoot share or the 360mm C-Mix wing share for the full-surface cutting in stubbles. The 100mm or 80mm C-Mix share can be used for primary tillage and the 40mm C-Mix share for deep loosening down to 30cm.
The depth adjustment is carried out hydraulically on the move from the cab. A disc element, with fine-serrated, 410mm diameter concave discs, is available for levelling the soil behind the tines. The levelling unit is automatically adjusted via the parallelogram linkage when the working depth is changed. It comes with a choice of seven reconsolidation rollers.
The three-point linkage mounted Cenio is a three-row cultivator with a tine spacing of 30cm
It’s designed to be used universally by interchanging of the various shares at depths from 5cm to 30cm.
A disc element with fine-serrated, 410mm diameter concave discs is available for levelling the soil behind the tines.
